| General Information | ||
| Model | DBC 1 port XPON | |
| Brand | DBC | |
| Type of the optical interface | SC/UPC connector | |
| Interface Type | 1 x 10/100/1000Mbps auto-adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector. | |
| Transmission distance | 20KM | |
| Receiving sensitivity | ≤-28dBm | |
| Transmitting optical power | 0~+4dBm | |
| Dimension | 82mm×82mm×25mm (L×W×H) | |
| Firewall | DDOS, Filtering Based on ACL/MAC/URL | |
| Power Supply | 12V 0.5A | |
| Warranty | 1 Year Warranty | |
Descripton:

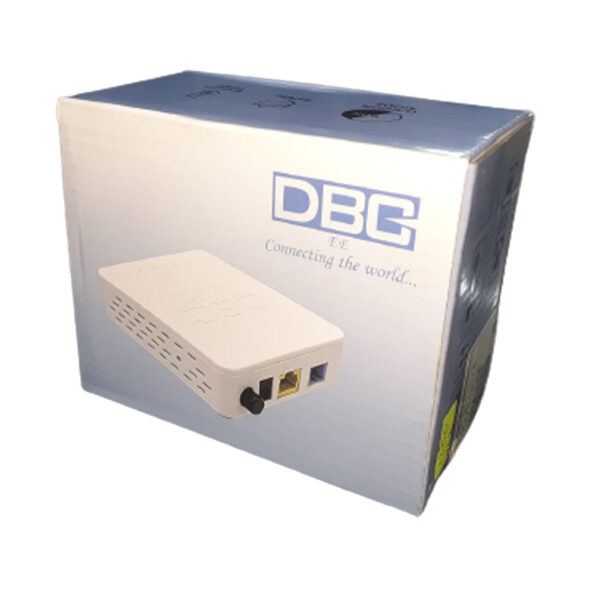

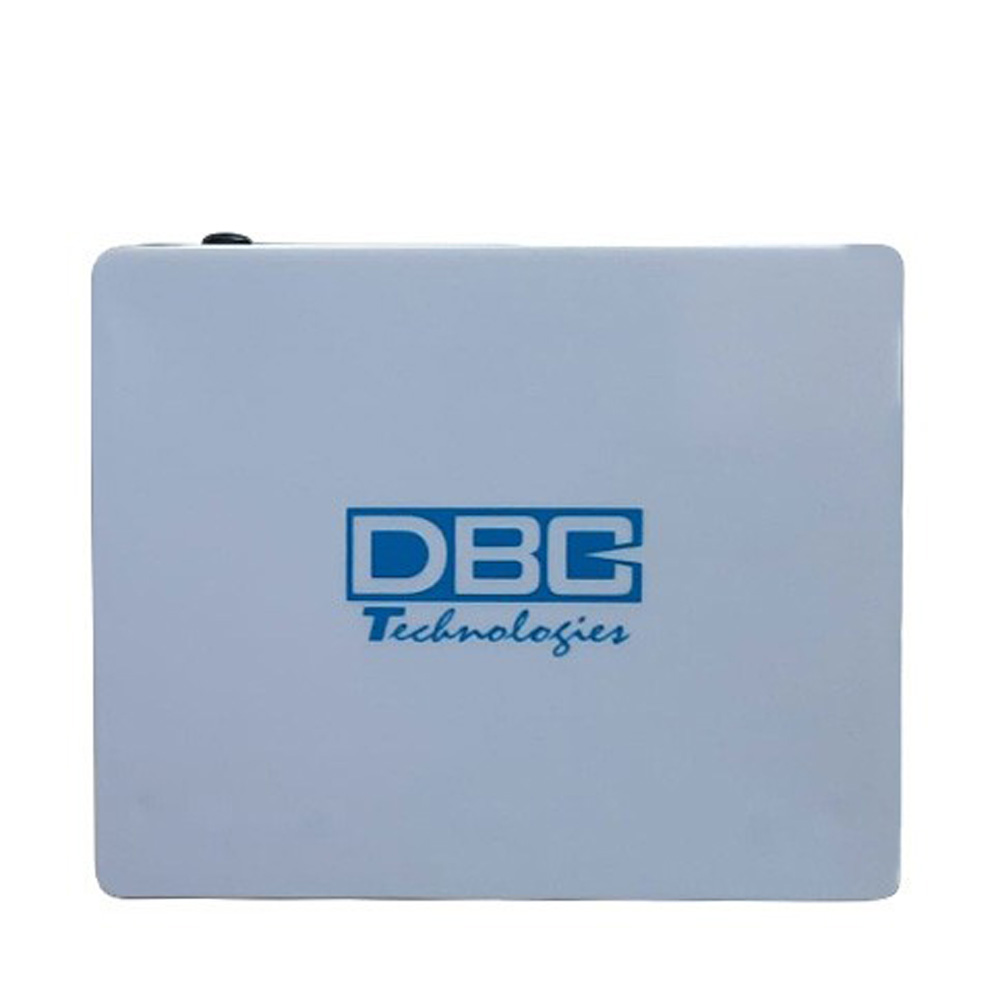

DBC 1 port XPON ONU
The DBC 1 port XPON ONU. G/EPON 1GE Safe ONU is support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, and also has a powerful firewall function. G/EPON 1GE ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products.
The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah. Dual-mode(Can access EPON/GPON OLTs). Compatible with popular OLT(s). Industrial Design. Routing or Bridging Mode. Detecting Rogue ONU. Flow & Storm Control , Loop Detection. Firewall: DDOS, Filtering Based on ACL/MAC/URL. O&M: WEB/TELNET/OAM(OMCI)/TR069.
