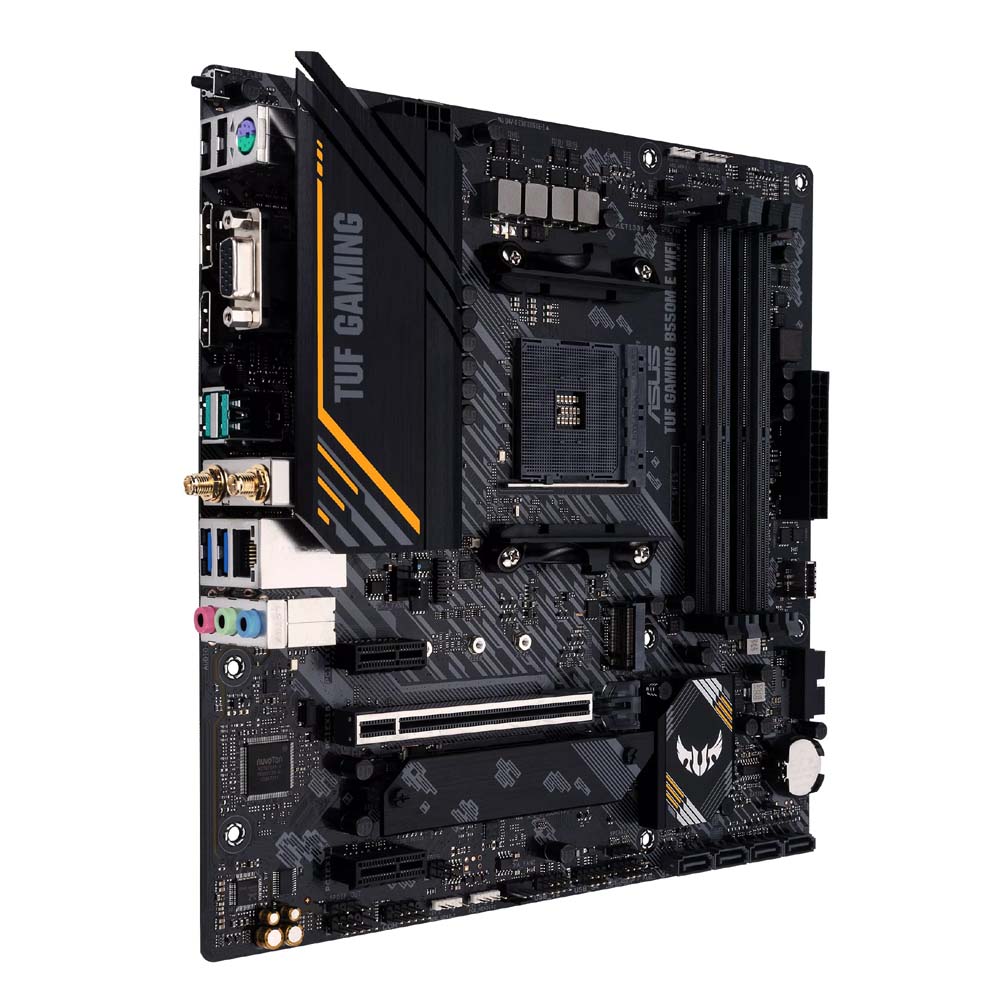

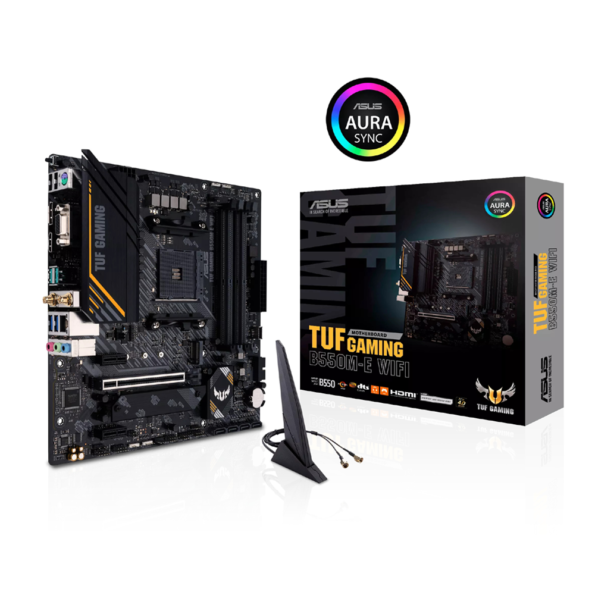

Asus TUF GAMING B550M-E WIFI AMD AM4 microATX Motherboard
৳ 19,100.00
Key Features
- Model: TUF GAMING B550M-E WIFI
- Memory Slot – 4
- Memory Max. – 128GB
- AMD AM4 Socket for Ryzen 5000/ 4000 G/ 3000 Series Processors
- Dual M.2, PCIe 4.0, SATA 6 Gbps
- Intel Wi-Fi 6, 1 Gb Ethernet
- Aura Sync RGB Lighting
| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | AMD B550 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors: AMD B550 Chipset: |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
Dual Channel Memory Architecture |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2 1 x D-Sub 1 x HDMI 2.1 (4K@60Hz) |
|

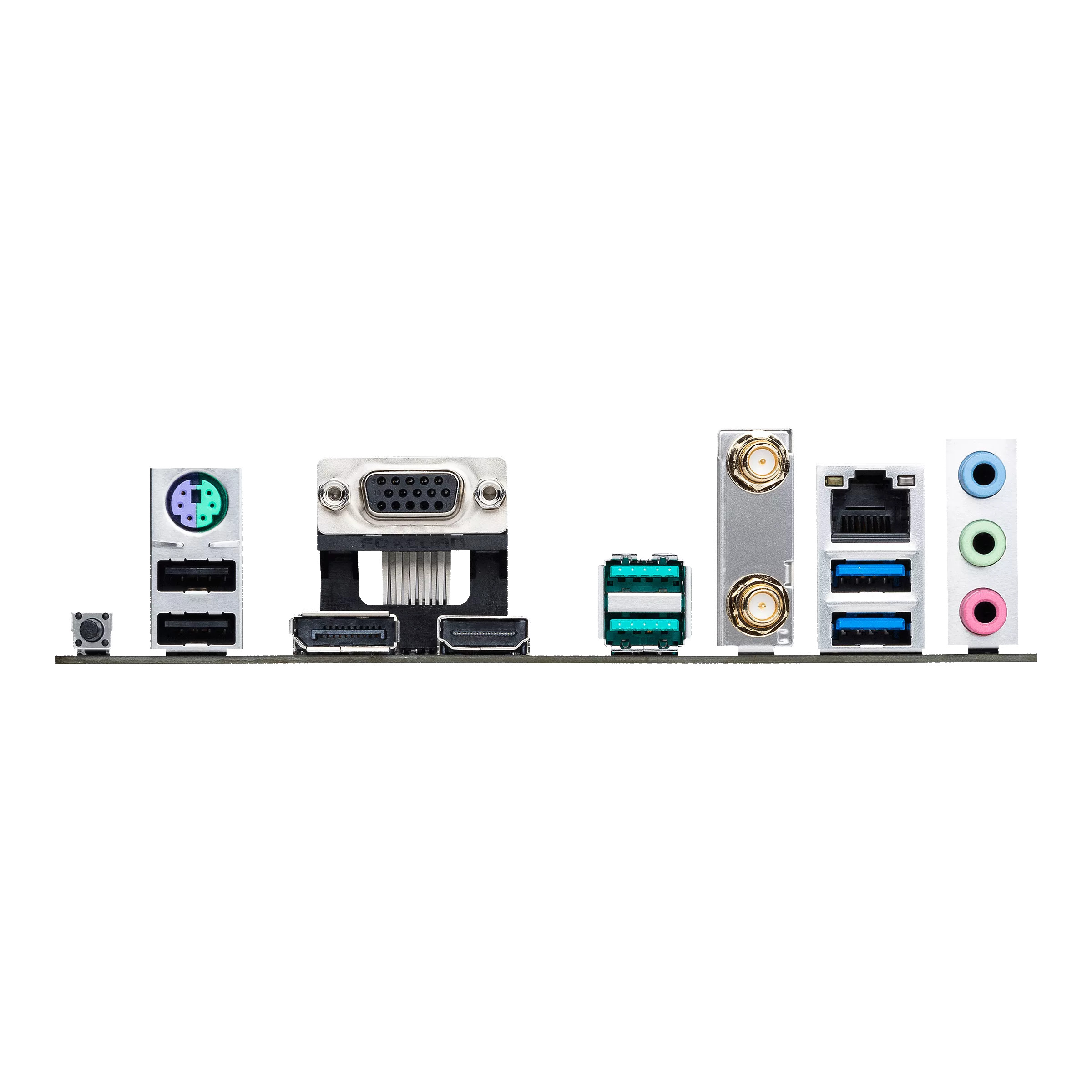

| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1(4K@60HZ) | |
| Display Port (s) | 1 x DisplayPort 1.2 | |
| D-Sub (s) | 1 x D-Sub | |
| USB (s) | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 1 connector (supports USB Type C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet TUF LANGuard |
|
| Wireless Communication module | 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.1 * Bluetooth v5.1 function will be ready in Windows 10 build 19041 or later. |
|
| Supported Storage | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 4000 G-Series Desktop Processors: AMD B550 Chipset: 4 x SATA 6Gb/s ports |
|
| Internal I/O Ports | Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related: Storage related: USB: Miscellaneous: |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS TUF PROTECTION – DIGI+ VRM – Enhanced DRAM Overcurrent Protection – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY AURA Sync |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync AI Suite 3 – Performance and Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ – EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
Description
Asus TUF GAMING B550M-E WIFI AMD AM4 microATX Motherboard
The Asus TUF GAMING B550M-E WIFI Motherboard comes with AMD AM4 Socket ready for Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550M-E is the perfect foundation for your next high-core-count battle rig. The onboard VRM of TUF Gaming B550M-E utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen Processors demand. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF Gaming B550M-E provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. 2.5G onboard Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage of this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos, and enjoy faster file transfers. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, allows you to configure application priority via an intuitive interface and reduces network lag. The Asus TUF GAMING B550M-E WIFI comes with 3 years of warranty.
