| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H610 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features |
|
| Expansion Slots | ||
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1 x D-Sub port (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| D-Sub (s) | 1 x D-Sub port | |

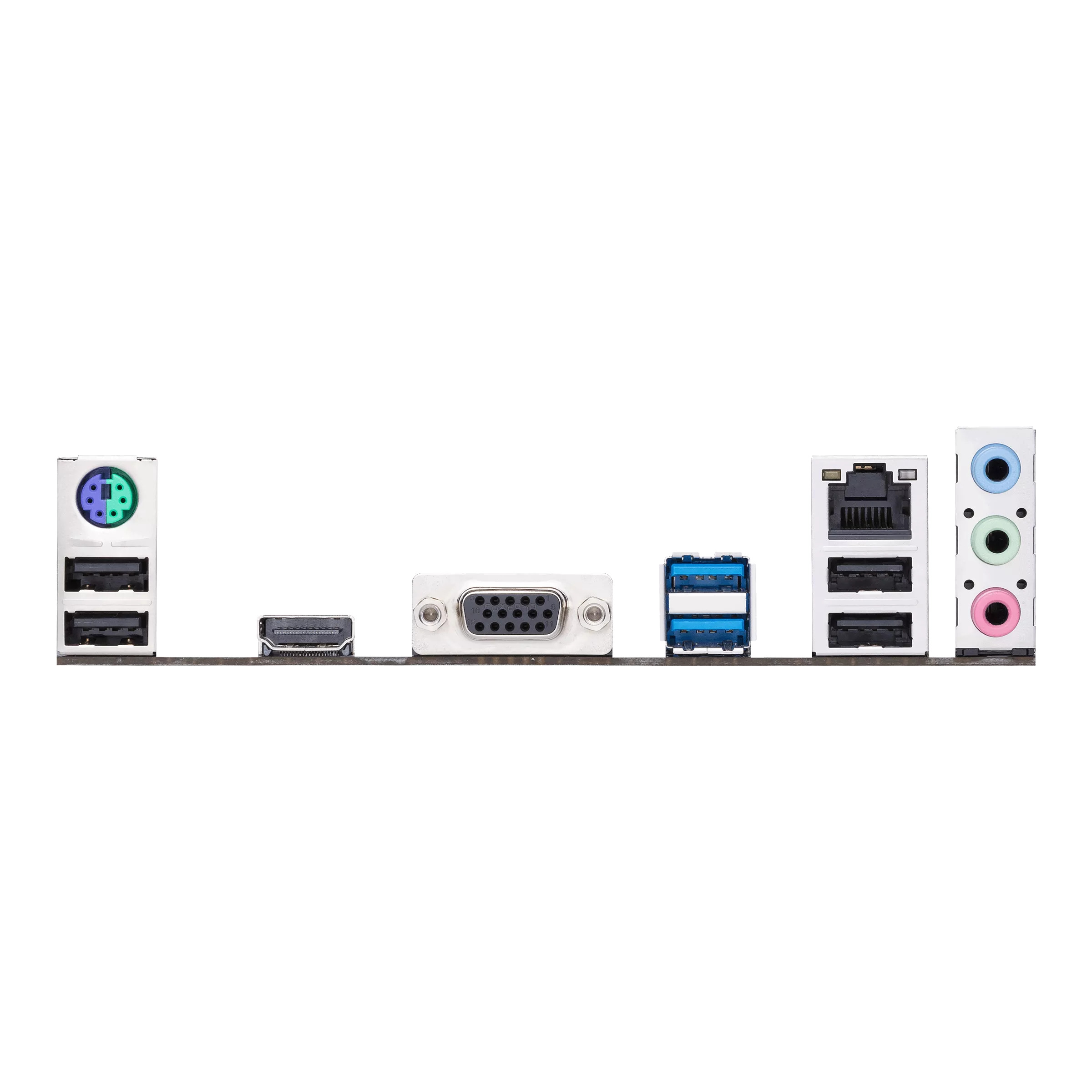

| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet | |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related Storage related USB Miscellaneous |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design ASUS Thermal Solution ASUS Lighting Control |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
Description

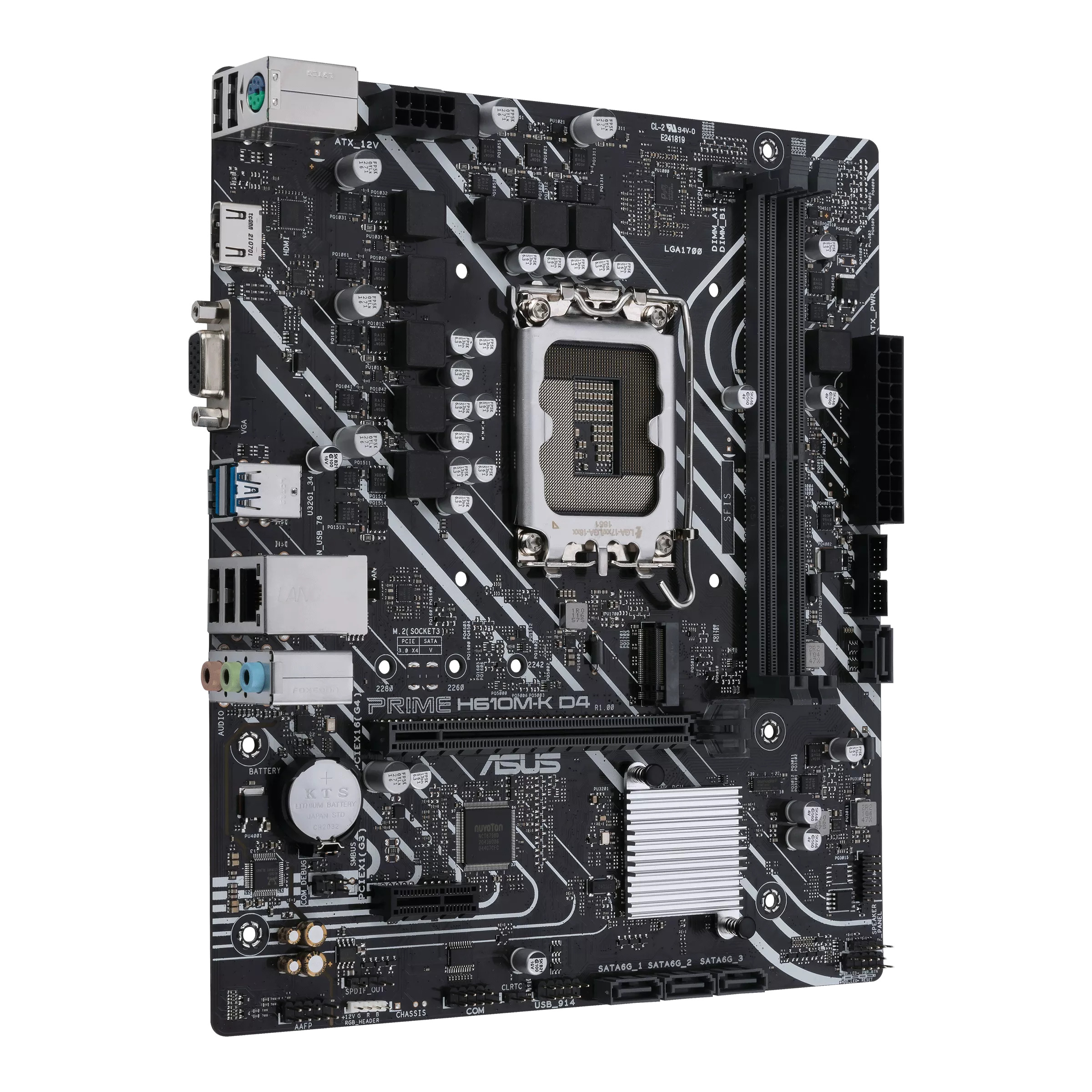

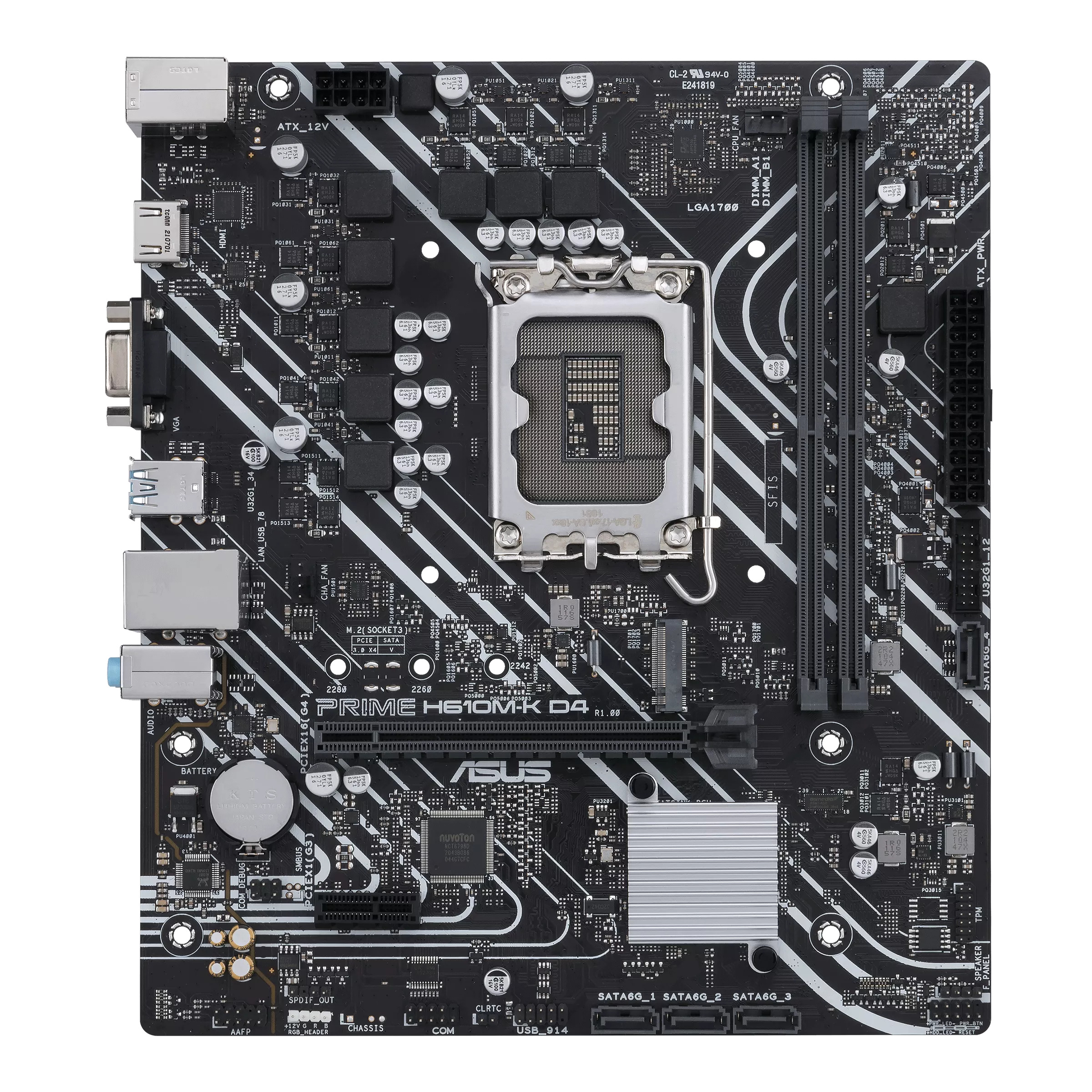

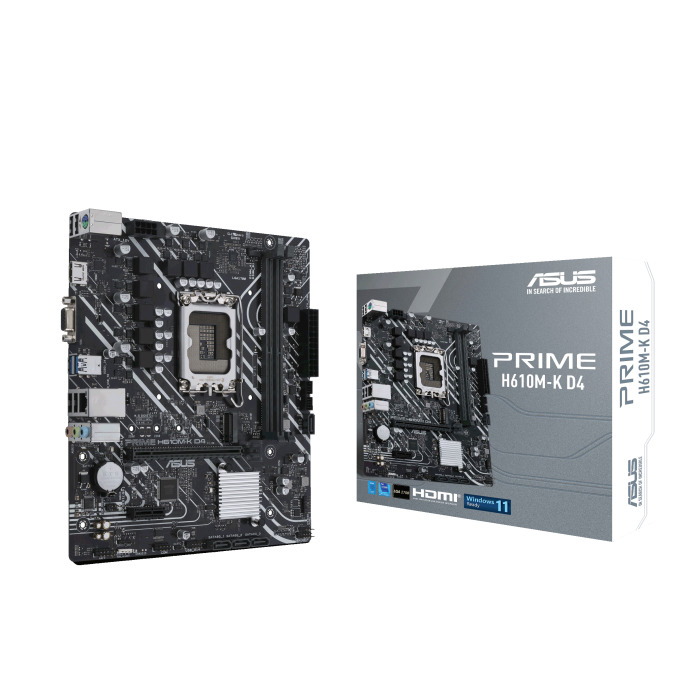

ASUS PRIME H610M-K D4 12th Gen mATX Motherboard
The ASUS PRIME H610M-K D4 supports 12th Gen Intel processors and Intel LGA 1700 socket and Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. This motherboard comes with an Enhanced power solution, six-layer PCB, ProCool socket, military-grade TUF components, and Digi+ VRM for maximum durability. It has a robust power design, comprehensive cooling solutions, and intelligent tuning options. It features 32Gbps M.2 slot, Realtek 1 Gb Ethernet, and USB 3.2 Gen 1 support. Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. The motherboard comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storage, ASUS PRIME H610M-K D4 motherboards are the perfect foundation for your next high-core-count battle rig. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity. the new ASUS PRIME H610M-K D4 motherboards provide a high-performance gaming package with a long list of features ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. The latest ASUS PRIME H610M-K D4 offers 03 years warranty.
