ASRock H610M-HDV/M.2 12th Gen Micro ATX Motherboard
৳ 11,300.00
Key Features
- Model: H610M-HDV/M.2
- Supports 12th Gen Intel Core Processors (LGA1700)
- 6 Phase Power Design
- Supports DDR4 3200MHz
- Graphics Output Options: HDMI, DisplayPort, D-Sub
Out of stock
Specification
| Basic Information | ||
| Supported CPU | – Supports 12th Gen Intel Core Processors (LGA1700) – Digi Power design – 6 Power Phase design – Supports Intel Hybrid Technology – Supports Intel Turbo Boost Max 3.0 Technology |
|
| Chipset | Intel H610 | |
| BIOS | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
|
| Form Factor | – Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm – Solid Capacitor design |
|
| Audio | – 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) – Supports Surge Protection |
|
| Expansion Slots | ||
| PCI | – 1 x PCIe Gen4x16 Slot – 2 x PCIe Gen3x1 Slots – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 2 x DDR4 DIMM Slots | |
| Supported Memory | – Supports DDR4 non-ECC, un-buffered memory up to 3200 – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | – Intel Xe Graphics Architecture (Gen 12) – Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 – Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
|

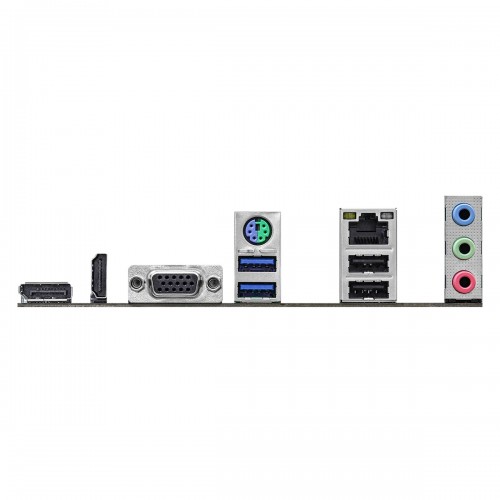

| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| Display Port (s) | 1 x DisplayPort 1.4 | |
| D-Sub (s) | 1 x D-Sub Port | |
| USB (s) | – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
|
| LAN Port (s) | – Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel I219V – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports UEFI PXE |
|
| Supported Storage | – 4 x SATA3 6.0 Gb/s Connectors – 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes |
|
| Audio | – HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Ports | – 1 x COM Port Header – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin) – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
| Others | ||
| Special Features | ASRock Super Alloy – Premium Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
Description
ASRock H610M-HDV/M.2 12th Gen Micro ATX Motherboard
The ASRock H610M-HDV/M.2 Motherboard supports 12th Gen Intel Core Processors (LGA1700). It features a 6 Phase Power Design and it supports DDR4 3200MHz. uses a next-generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard are greatly enhanced.
PCIe Gen3 x4 Ultra M.2 interface
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability, and is able to deliver the ultimate network experience to users. Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
3 Graphics Outputs
It comes with a D-Sub + DisplayPort + HDMI combo. It supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz. It also supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz. D-Sub with max. resolution up to 1920×1200 @ 60Hz. It comes with support HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports.
The ASRock H610M-HDV/M.2 Motherboard has 03 years warranty.
What is the price of ASRock H610M-HDV/M.2 12th Gen Motherboard in Bangladesh?
The latest price of ASRock H610M-HDV/M.2 12th Gen Motherboard in Bangladesh is 11,300৳. You can buy the ASRock H610M-HDV/M.2 12th Gen Motherboard at best price from our website or visit any of our showrooms.
